Description

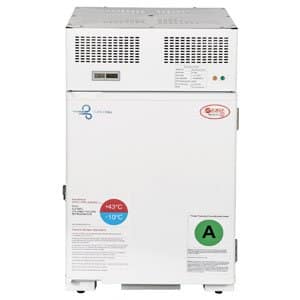

| ZBF30AC BLOOD BANK REFRIGERATOR ELECTRIC – COMPRESSION WITH SURE CHILL® TECHNOLOGY | ||
| Application: | Blood Bank Refrigerator | |
| Cold Chain Compliant | YES | |
| Type of Appliance | Ice lined (water lined) refrigerator | |
| Manufactured in: | South Africa | |
| IEC 60335 Compliant | YES | |
| Specifications | ||
| Gross Volume (L) | 30 | |
| Blood Bag Storage | 18 x 450ml Blood bags | |
| Hot Zone Appliance (+43°C) | YES | |
| Refrigerant | R134a (CFC Free) | |
| Min rated ambient temp | +10°C | |
| Energy Source | Electric Mains 220-240V 50/60hz or
Electric Mains 115V / 60Hz optional |
|
| Fuel and cycle type | Electric – compression | |
| Temperature Indicator | External Solar thermometer | |
| Drawers | 3 | |
| Power Consumption | ||
| KWH/24Hrs on 220 – 240 mains Electric | +32°C | 2.5 Hours |
| +43°C | 4 Hours | |
| Performance Information | ||
| Hold Over Time (to 6°C) | >72 Hours | |
| Cooldown time 32°C | Full Load | Half Load |
| (Bloodbags stable at 37°C) | 16 hours | 8 hours |
| * Unit uses SureChill ® Technology. Water lining guarantees no freezing of stored items
Hold over time has been carried out while not fully charged |
||
| Accessories | Liquid PCM to mix with water | |
| Optional Extras | Drawers, 115V/60Hz nominal power option,
Plywood packaging, 2 padlocks |
|
| Dimensions | ||
| Unboxed Dimensions (mm) | (H) 1028mm x (W) 619mm x (D) 563mm | |
| Shipping Volume | 0.372 m³ | |
| Shipping Weight | 116kg | |
| Temperature Control | Temperature accuracy is exceptionally high; temperature varies by less than 1°C throughout the refrigerated compartment during compressor cycling and holdover. | |
